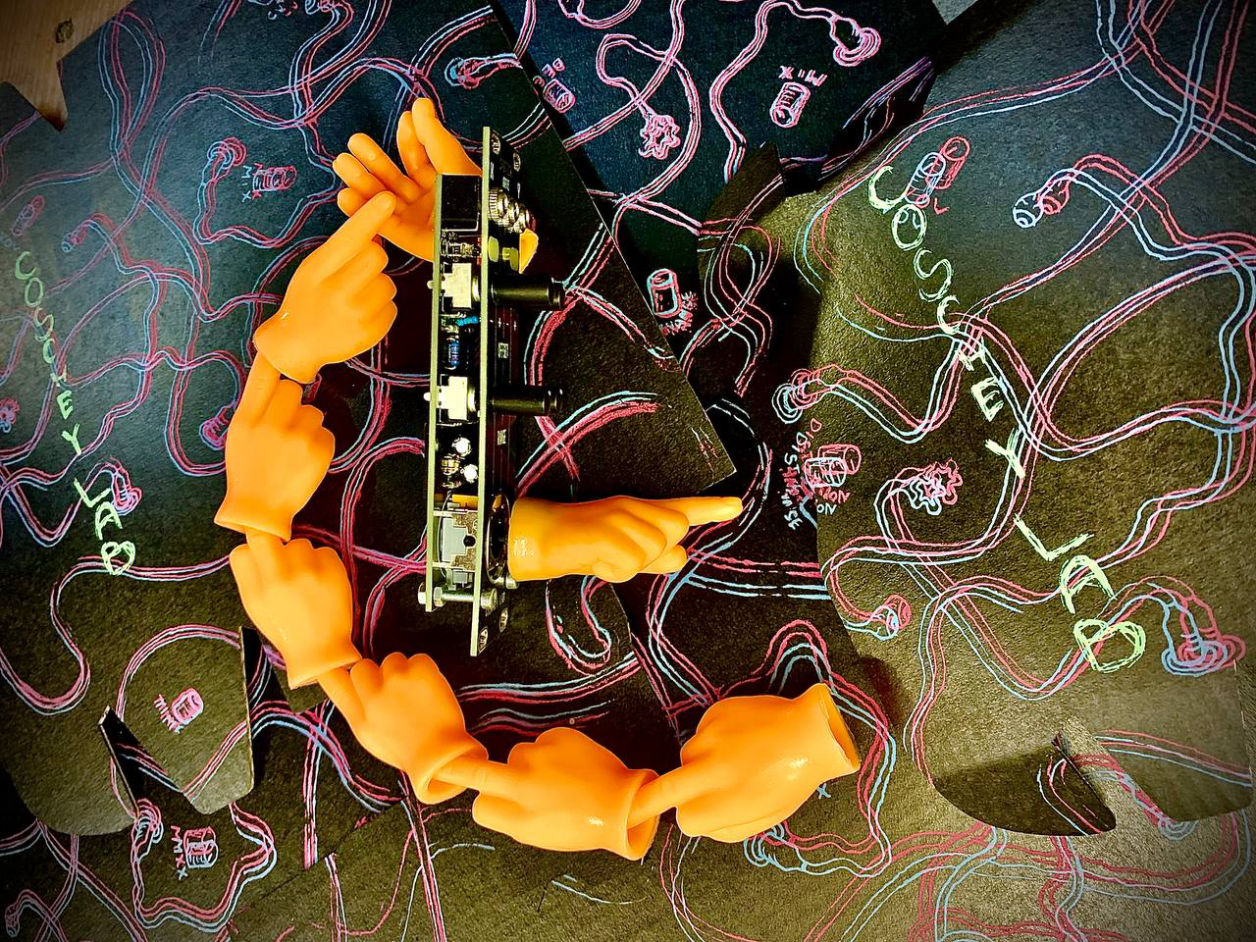

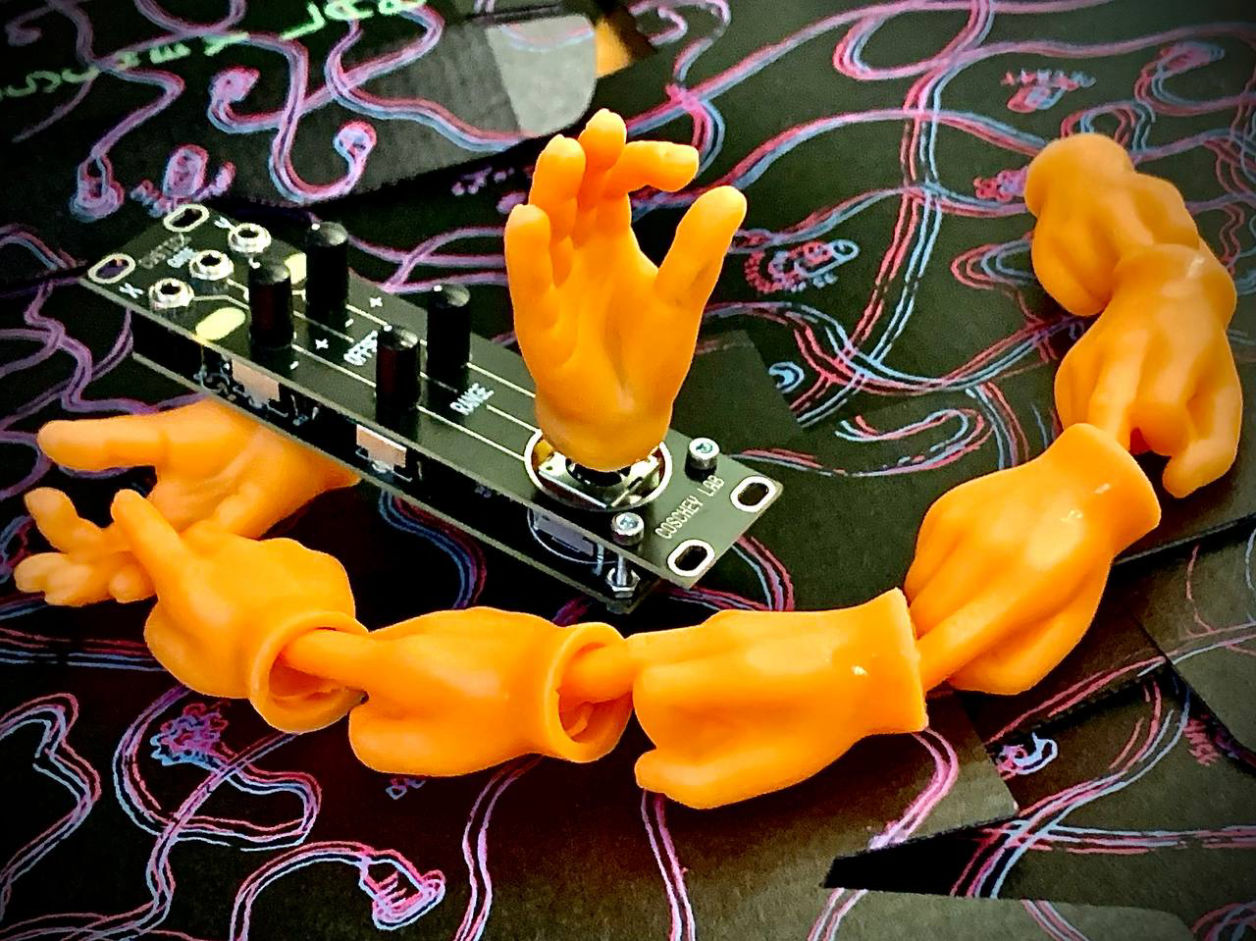

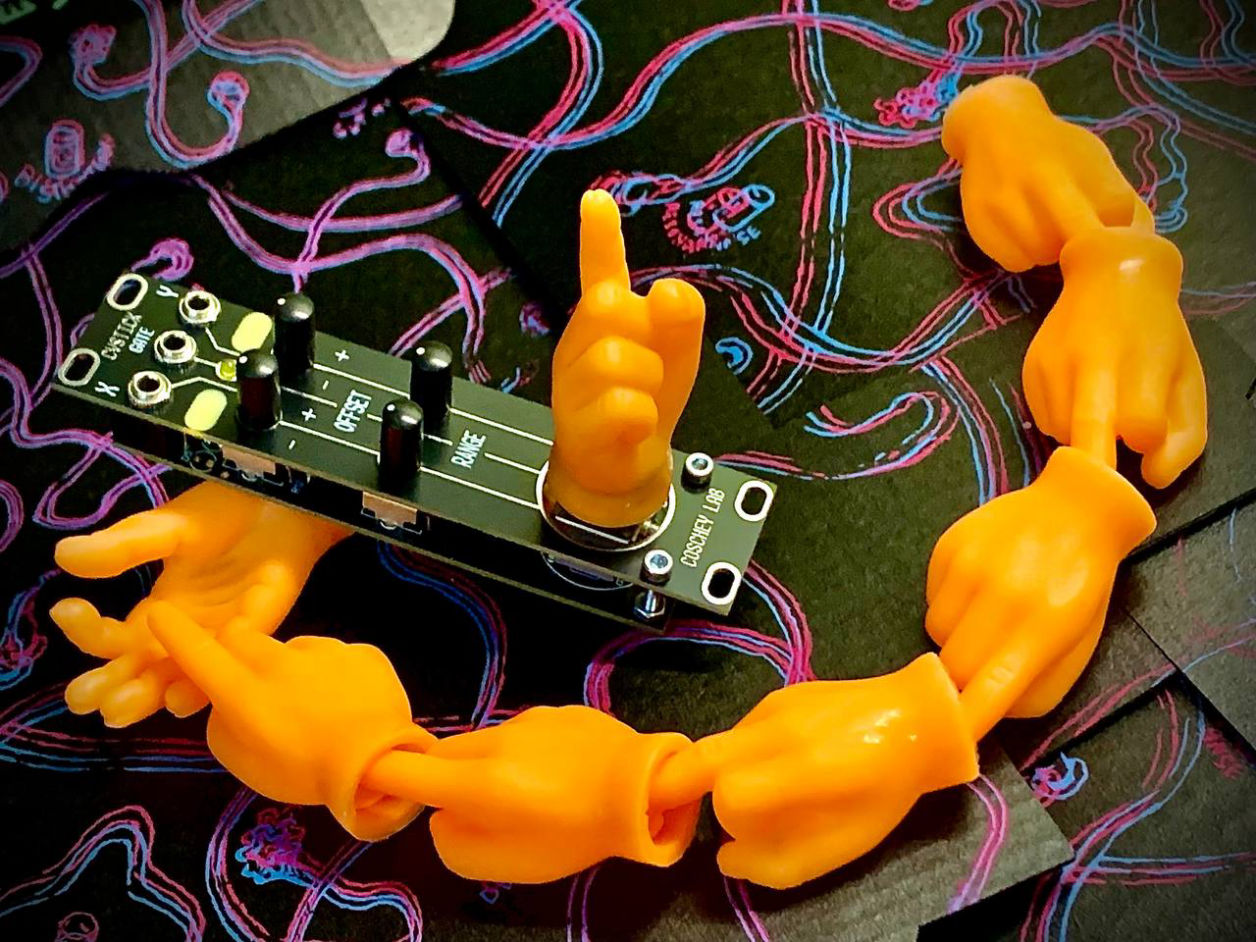

6hp cv manipulator
This is an incredibly comfortable joystick with a long handle and smooth control that will become your friend in fine manipulation of voltages.
Schematics and design made by Banan vedro
at hack rhema lab lviv 2024
generation of voltage out with two coordinates x y
gate button directly on the joystick.
gate out 5v
Offset changes zero point of the voltage.
zero in the center position of the knob.
select max voltage using range 0-20vpp
