EVRORACK

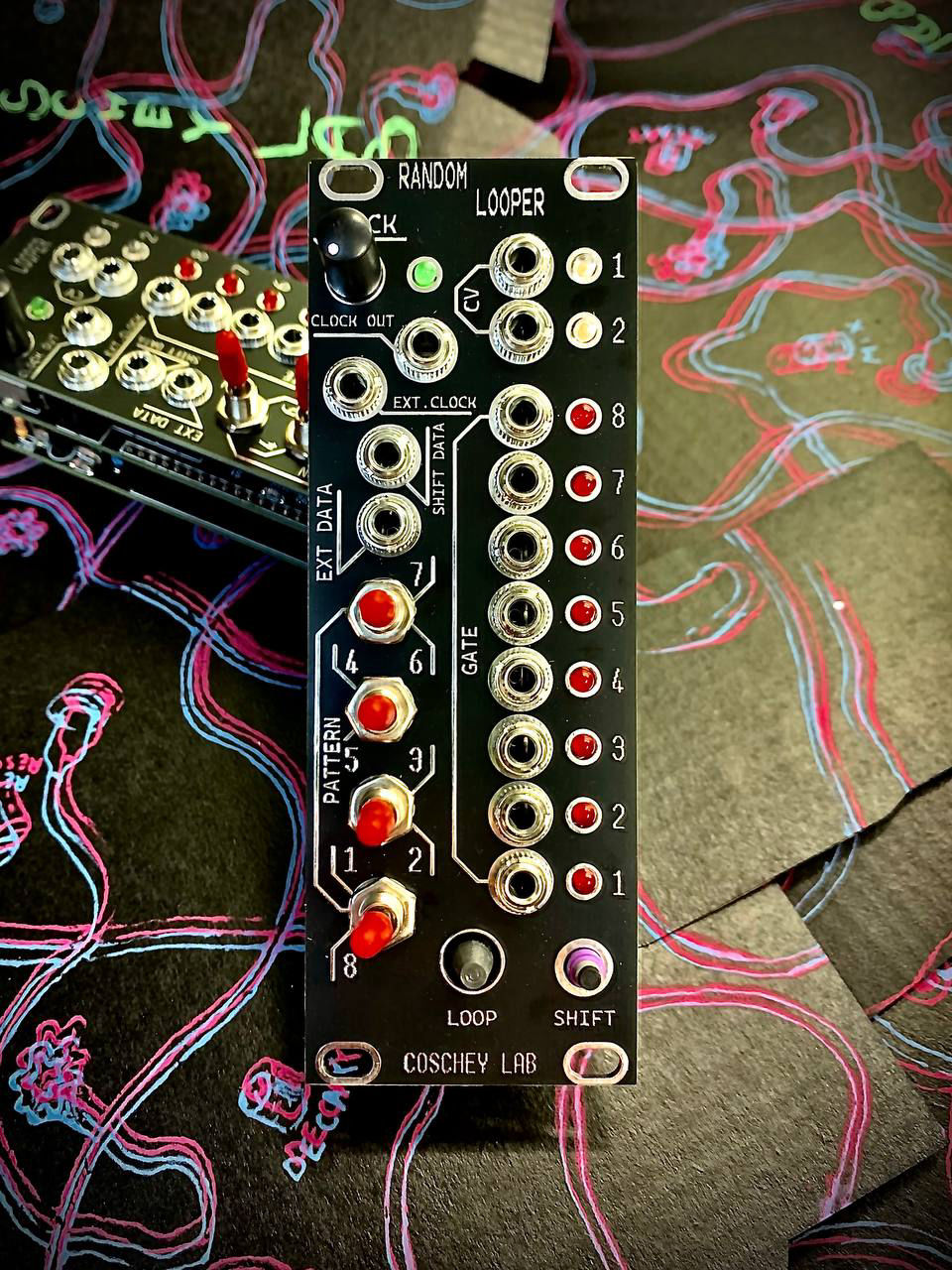

RNDOM LOOPER

8hp cv\gates generator

This a source of pseudo-random voltages
and gates using an shift registr with LFSR system.
Great think for generating percussion
rhythms and using like not standard sequencer.

2 CV out inverted each other 0-10V
8 GATE out 5v
1 clock out 5v
1 external clock in 1-12v
""if you use external clock,
clock out still will give integrated clock""
1 shift data button
""use this for record or erase next step""
1 shift data trigger input 1-12v
4 tumblers is gates feedback for
choose pattern 2-256 steps
1 joystick white 5 buttons for fast
using short patterns 3-8 steps
1 external data input
""if you use external data, steps feedback
control will not work

Schematics and design made by Banan vedro
at hack rhema lab lviv

V C F D

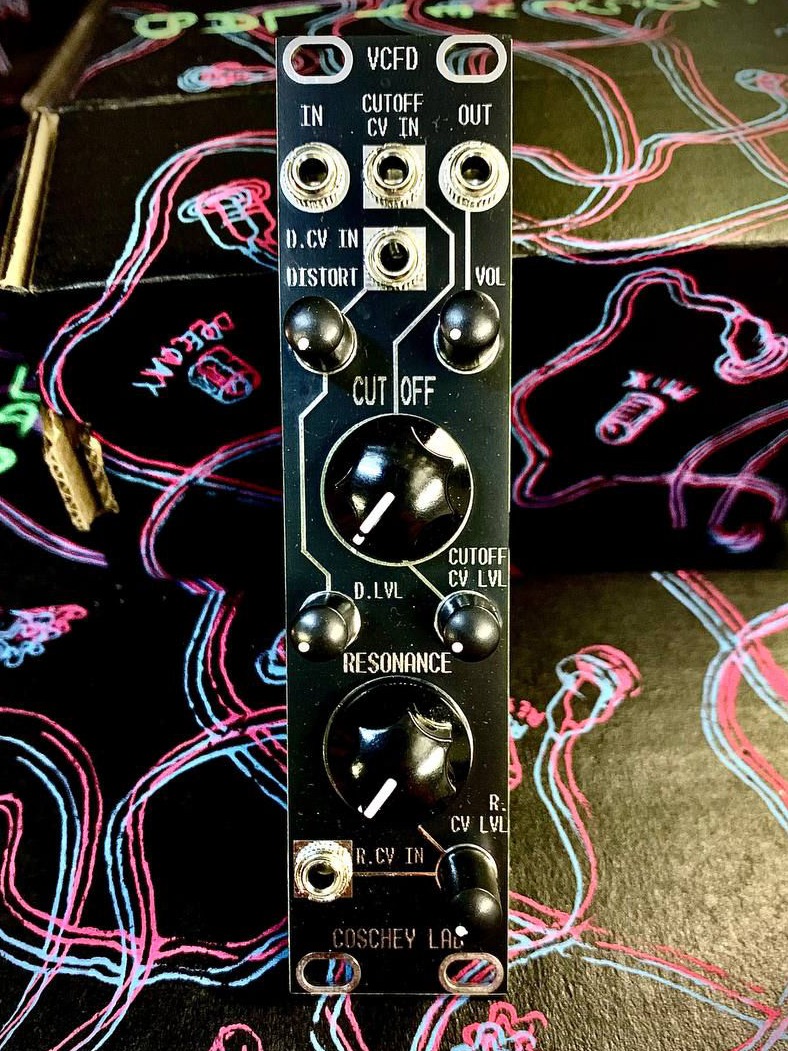

6hp vcf\vco\distortion

This a experimental multifunctional diode ladder filter
withs distortion in the input stage, high level of resonance
and big diapason of frequency 3-5hz-40 - 50mhz ! ! !

vcfd have very sensitive controls but at the same time this allows you to squeeze out much more variety from it for your experiments.

Distortion knob - 70% pre amp, 30% distortion

d.lvl is control of the amount signal after distortion stage, which directly affects on resonance intensity.

great resonance possibilities,
be careful with position after half,
it will raise your volume when cut off is active,
but clean signal will become quieter.
R.cv in and r.cv lvl work like mod for resonance.

cut off starts to work like vсo when the resonance is
above the middle, frequency 3-5hz-40 - 50mhz ! ! !

carefully!! the output signal can be very high, max 20Vpp, watch the volume when resonance or distortion is high

please save yours and your neighbor's ears and psyche

Schematics and design made by Banan vedro
at hack rhema lab lviv 2024

C V ST I C K

6hp cv manipulator

This is an incredibly comfortable joystick with a long handle and smooth control that will become your friend in fine manipulation of voltages.

generation of voltage out with two coordinates x y

gate button directly on the joystick.
gate out 5v

Offset changes zero point of the voltage.
zero in the center position of the knob.

select max voltage using range 0-20vpp

Schematics and design made by Banan vedro
at hack rhema lab lviv 2024

M I X E R

2hp

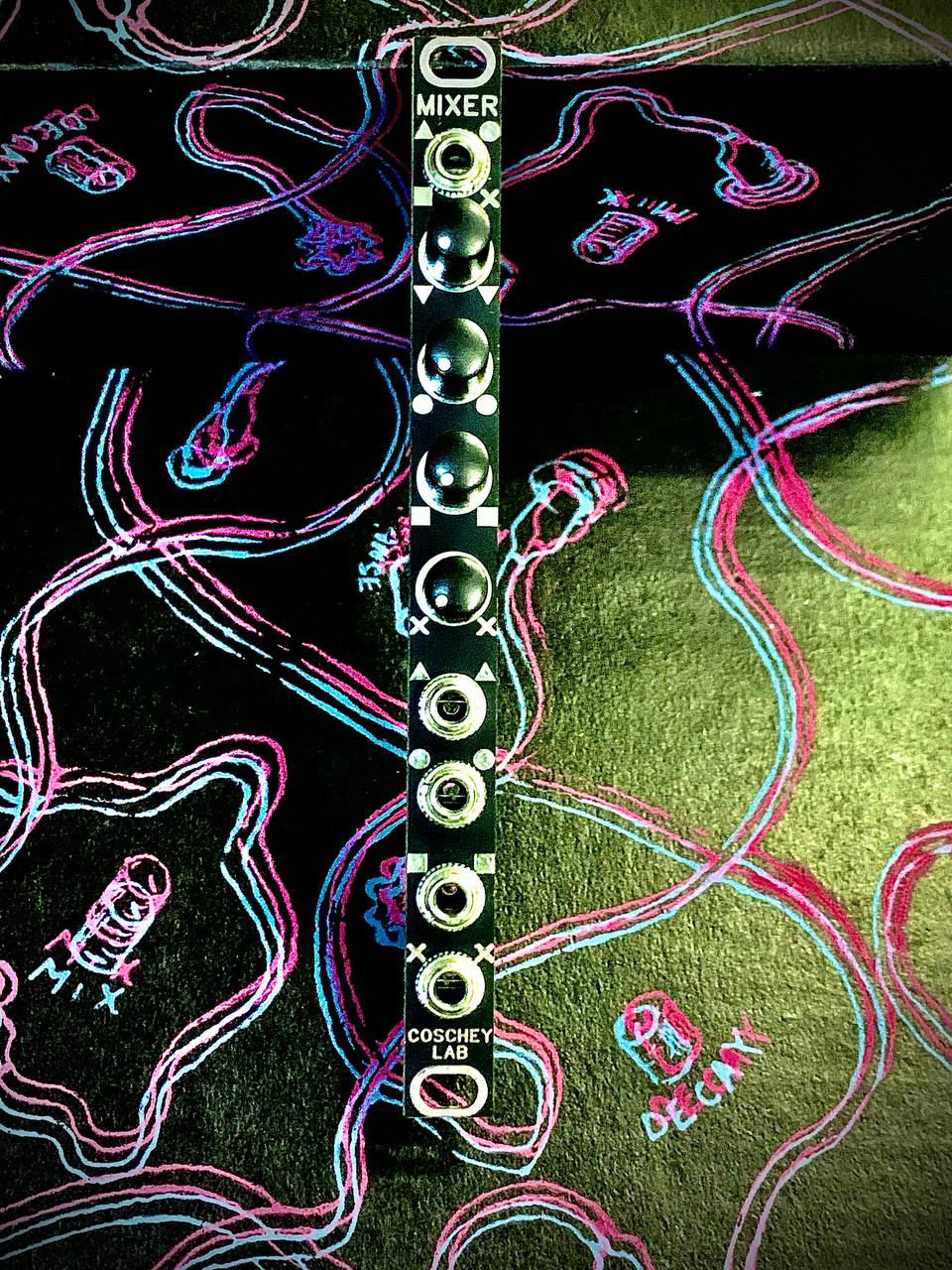

simple and super compactable summing active 4ch mixer

Schematics and design made by Banan vedro
at hack rhema lab lviv 2024.

PoW PoW PoW

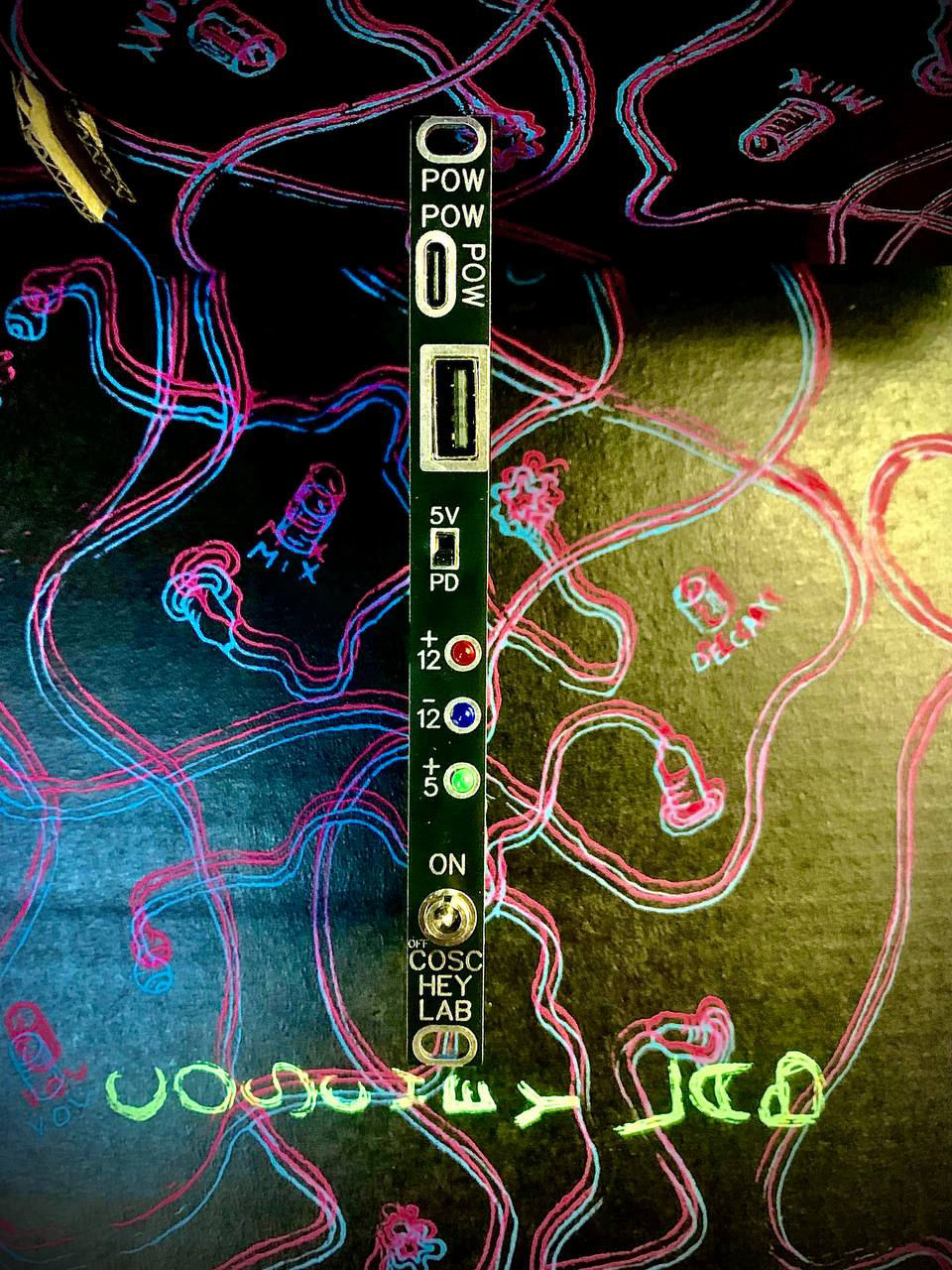

2hp power bank power supply

pow pow pow power bank power supply for euroreck systems will become your best friend in traveling, perfect for a compact case

complete with power rail

input:
5v \ pd(power delivery to 12v) 3a

output:
5v input = +12-500mA
(600ma start to be hoot)
-12-350ma
+5-from input
pd input = +12-600mA
-12-400ma
+5-1a

Schematics and design made by Banan vedro
at hack rhema lab lviv 2024
